Product Details:
|
Material: | Zirconia Ceramic | Application: | Automatic Machine, Medical Device, Automobile, Electric Appliance, Optical Instrument, Consumer Industry,electronic Device,digital Communication, UAV,aerospace, Traffictool,Electrical Machinery,Test Equipment Etc |
---|---|---|---|
Style: | Customized | Tolerance: | +/-0.002mm |
MOQ: | Low MOQ Is Accepted(1pcs-Bulk) | ||
High Light: | ZrO2 Ceramic Spare Parts,Al2O3 Ceramic Spare Parts |
Custom Multi Types Precision Ceramic Spare Part Components Alumina (Al2O3) Zirconia(ZrO2) Si3N4 SiC Parts :
Quick Detail:
Optional Materials | alumina, zirconia, silicon carbide, silicon nitride, steatite optional |
Outer diameter | 0.5 ~800 mm |
Length | 1~1000mm |
Roughness | To be Ra0.05 |
Surface treatment | Polished, Glazed, Metalized availability |
Cosmetic | Smooth surface without contamination, deformation, and crack |
Datasheet of technical ceramic materials
Property | Units | Materials | ||||
99.5%Al2O3 | 99%Al2O3 | 95%Al2O3 | ZrO2 | Si3N4 | ||
Density | g/cm3 | ≥3.85 | ≥3.80 | ≥3.60 | ≥6.0 | ≥3.2 |
Water absorption | % | 0 | 0 | 0 | 0 | 0 |
Hardness | HV | 1700 | 1700 | 1500 | 1300 | 1550 |
Flexural strength | Mpa | ≥379 | ≥338 | ≥320 | ≥1200 | ≥600 |
Compressive strength | Mpa | ≥2240 | ≥2240 | ≥2000 | ≥1990 | ≥2500 |
Fracture toughness | Mpa m1/2 | 4-5 | 4-5 | 3-4 | 6.5-8 | 6 |
Max. service temperature (Non-loading) |
ºC | 1675 | 1600 | 1500 | 1000 | 1200 |
CTE (20-800ºC) | 1×10 -6 /ºC | 6.5~8.0 | 6.2~8.0 | 5.0~8.0 | 8.0~9.5 | 3.1 |
Thermal shock | T(ºC) | ≥250 | ≥200 | ≥220 | ≥300 | ≤1000 |
Thermal conductivity(25ºC) | W/m.k | 30 | 29 | 24 | 3 | 15~20 |
Volume resistivity (25ºC ) | ohm.cm | >1 x 10 14 | >1 x 10 14 | >1 x 10 14 | >1 x 10 11 | >1 x 10 12 |
Insulation strength | KV/mm | 19 | 18 | 18 | 17 | |
Dielectric constant(1Mhz) | (E) | 9.7 | 9.5 | 9.5 | 29 |

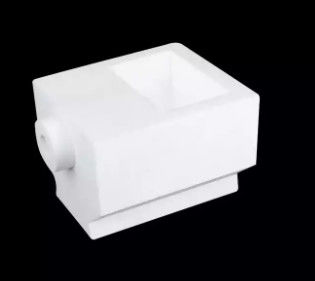

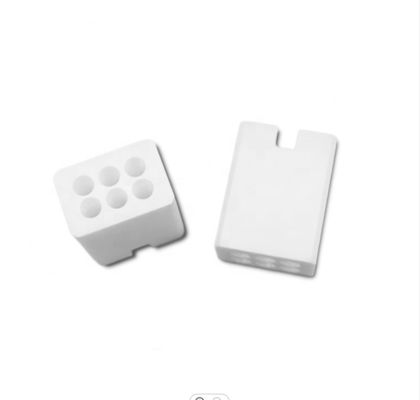

Producdts show:
Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 12 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard.
A 100% cosmetic inspection will be done.
Packing :
Custom Plastic case with foam inside
About Luckymfc:
Our highly qualified ISO9001 machine shops can make any custom design, simple or complex. We offer rapid CNC prototypes, small-batch machining, and high-volume production, with all orders serviced by BAISHUN from end to end.
to get a price, lead time, and design-for-manufacturability feedback on your custom CNC parts. Our CNC service offers metals and plastics and flexible production and shipping options to meet you at the perfect price and product development stage.
