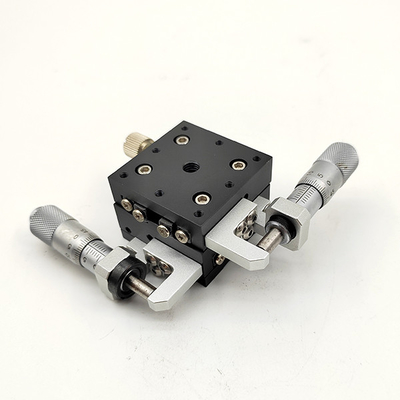

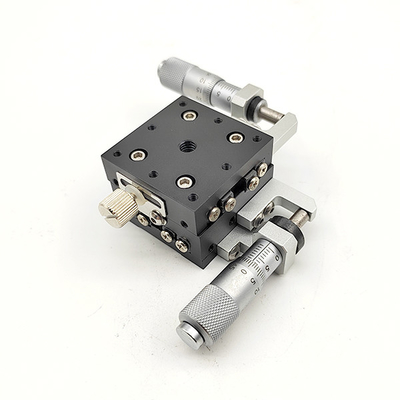

Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001

Certification
China Shenzhen Luckym Technology Co., Ltd. certification
China Shenzhen Luckym Technology Co., Ltd. certification
I'm Online Chat Now

Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001

Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001
Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001
Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001 Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001 Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001

Large Image :  Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001

Product Details:
Place of Origin: China
Brand Name: LM
Certification: ISO9001
Model Number: LMD12AJXY
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Normal
Delivery Time: 5-8working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50pcs / hour

Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001

Description
Material: Aluminum Alloy、Stainless Steel Transmission Direction: XY Axis
Cost Performance: Precision Specifications: 40、60、80、100
Thickness: Standard Type Guide Rail Type: Cross Roller Guide Wide Guide Rail
High Light:

Alloy XYZ Micrometer Stage

,

Aluminum XYZ Micrometer Stage

,

ISO9001 Precision XYZ Stage

Cross roller precision micrometer feed type XY axis wide guide rail



Quick Details :
1. Place of Origin:ShenZhen, China

2. Transmission direction:XY axis
3. Material: Aluminum alloy,Stainless steel
4.Type: Manual displacement table
5. Surface treatment: black anodized

6. Specifications and Models:40*40,60*60,80*80,100*100



Product specification

models Mesa dimension(mm) distance (mm) Driving position Differential head(µm) Load resistance(N) Mobile precision load(Kgf) main body weight(kg)
codes specifications parallelism(μm)
LMD12AJXY 40 40*40 ±6.5 The side 10 9.8 60 2 0.2
60 60*60 29.4 5 0.4
80 80*80 ±12.5 39.2 80 10 0.7
100 100*100 15 1.1





Operating environment of slide table:
Operating environment: 10-50℃, 20-70%RH(no condensation)
Recommended operating environment: 22±5 ℃, 20-70%RH(no condensation)





Products:

Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001 0









Installation dimensions

Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001 1



Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001 2





Cross roller guided wide guide rail

Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001 3



Area of use of slide table

Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001 4

Our advantage
1. 90% standard parts will be shipped within 3 days.Assembly products can be delivered according to customer requirements
    Customized products can be negotiated according to customer demand delivery date
2. Non-standard drawing customization.velop new products according to demand
3. Strict internal quality management system.Comprehensive supplier quality management system
4. The whole series of products have 3D models,Calculation and selection support to improve design efficiency.Pre-sales support and

    after- sale technical training services





Logistics :
By international express to global is around 7-10 working days to be reached (DHL/UPS/TNT/EMS/FEDEX etc. as per demand).
For sea shipment to global is around 15-20 working days to be reached.
Precision XYZ Micrometer Stage Aluminum Alloy Material ISO9001 5



FAQ

Q:Is your organization committed to the concept of total quality management?

A:Yes, no matter in laser cutting, bending, or CNC machining, the workers will conduct the first sample inspection and random inspection during the processing to ensure the quality of the products


Q:How many checks are performed on a project?
A:Usually, products will go through the following four inspections: incoming inspection, production first inspection, sampling inspection, and pre-shipment inspection. Among them, sampling inspection will be conducted multiple times.



Q:Will you be able to work with our engineering team to review drawings and provide quick, estimated pricing for desired changes?
A:Yes, our engineers respond very quickly. If there is anything to be modified in the product, we can offer you a new price as soon as you tell us.



Q : What's kinds of information you need for a quote?

A : Kindly please provide the product drawing in PDF,and will be better you can provide in .dwg / .stp / . iges / .stl , Send drawing.



Q:Is the material ROHS compliant?
A:Yes



Q:Will your company sign an NDA?
A:Yes
