QVLN Series Straight Planetary Gear Reducer High Precision Torque Right Angle

Description
Function: Change Drive Torque, Speed Changing, Speed Reduction Gear Shape: Spur Gear
Return Clearance: 8-16 Arcmin Installation: Vertical Type
Origin: China Step: Double-Step
High Light:

16 Arcmin Planetary Gearbox Reducer

,

8 Arcmin Planetary Gearbox Reducer

,

Vertical Planetary Gear Reducer

QVLN series straight gear planetary reducer High precision high torque right Angle planetary reducer



The high-precision planetary gearbox adopts spur gear design, and is used in various control transmission fields with servo motors, such as precision machine tools, laser cutting equipment, battery processing equipment, etc. It has the advantages of large torsional rigidity and large output torque.



The product description:

1. With bevel gear reversing mechanism,right angle steering output is realized.
2. Round flange output.threaded connection,standardized size.
3. The input connection specifications are complete and there are man choices.
4. Straight tooth transmission,single cantilever structure, simple design and high cost performance.
5. Keyway can be opened in the force shaft.
6. Return backlash 8-16 arcmin.



Products show:

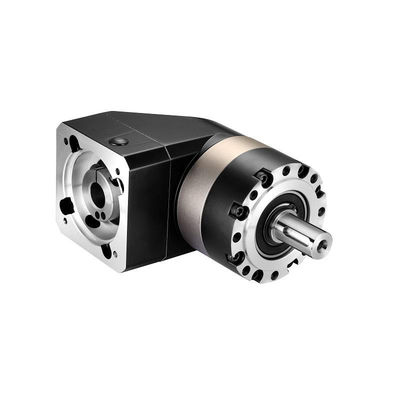

QVLN Series Straight Planetary Gear Reducer High Precision Torque Right Angle 0



Product Parameters
Specifications QVLN60 QVLN90 QVLN120
Technal Parameters
Max. Torque Nm 1.5times rated torque
Emergency Stop Torque Nm 2.5times rated torque
Max. Radial Load N 240 450 1240
Max. Axial Load N 220 430 1000
Torsional Rigidity Nm/arcmin 1.8 4.85 11
Max.Input Speed rpm 8000 6000 6000
Rated Input Speed rpm 4000 3500 3500
Noise dB ≤58 ≤60 ≤65
Average Life Time h 20000
Efficiency Of Full Load % L1≥95% L2≥92%
Return Backlash P1 L1 arcmin ≤8 ≤8 ≤8
L2 arcmin ≤12 ≤12 ≤12
P2 L1 arcmin ≤16 ≤16 ≤16
L2 arcmin ≤20 ≤20 ≤20
Moment Of Inertia Table L1 3 Kg*cm2 0.46 1.73 12.78
4 Kg*cm2 0.46 1.73 12.78
5 Kg*cm2 0.46 1.73 12.78
7 Kg*cm2 0.41 1.42 11.38
10 Kg*cm2 0.41 1.42 11.38
L2 12 Kg*cm2 0.44 1.49 12.18
15 Kg*cm2 0.44 1.49 12.18
16 Kg*cm2 0.72 1.49 12.18
20 Kg*cm2 0.44 1.49 12.18
25 Kg*cm2 0.44 1.49 12.18
28 Kg*cm2 0.44 1.49 12.18
30 Kg*cm2 0.44 1.49 12.18
35 Kg*cm2 0.44 1.49 12.18
40 Kg*cm2 0.44 1.49 12.18
50 Kg*cm2 0.34 1.25 11.48
70 Kg*cm2 0.34 1.25 11.48
100 Kg*cm2 0.34 1.25 11.48
Technical Parameter Level Ratio   QVLN60 QVLN90 QVLN120
Rated Torque L1 3 Nm 27 96 161
4 Nm 40 122 210
5 Nm 40 122 210
7 Nm 34 95 170
10 Nm 16 56 86
L2 12 Nm 27 96 161
15 Nm 27 96 161
16 Nm 40 122 210
20 Nm 40 122 210
25 Nm 40 122 210
28 Nm 40 122 210
30 Nm 27 96 161
35 Nm 40 122 210
40 Nm 40 122 210
50 Nm 40 122 210
70 Nm 34 95 170
100 Nm 16 56 86
Degree Of Protection   IP65
Operation Temprature ºC - 10ºC to -90ºC
Weight L1 kg 1.7 4.4 12
L2 kg 1.9 5 14



QVLN Series Straight Planetary Gear Reducer High Precision Torque Right Angle 1



Our advantage:



1.Output threaded connection, standard installation,universal usage.
2.Single cantilever structure.simple design,economic price
3.Working steady. Low noise.
4.Round flange output,threaded reverse connection,standardized size.
5.Keyway can be opened in the force shaft.
6.
The output connection specifications are complete and there are many choices
7.Backlash 8-16 arcmin. Can suit most occasion.
