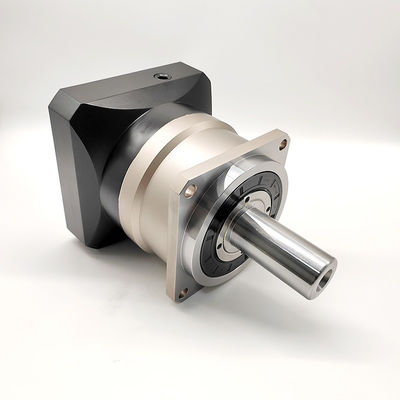

QA Series Planetary Gear Reducer High Torque Low Backlash Low Noise

Large Image : QA Series Planetary Gear Reducer High Torque Low Backlash Low Noise

Product Details:

Place of Origin:	China
Brand Name:	LM
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	1-20USD
Packaging Details:	Normal
Delivery Time:	5-8working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1-20000

Contact Now

QA Series Planetary Gear Reducer High Torque Low Backlash Low Noise

Description

Specification Range:	60-220	Speed Ratio Range:	3-100
Precision Range:	1-3arcmin(p1); 3-5arcmin(p2)	Specification:	Size
Origin:	China	Model NO.:	Xxx
High Light:	Low Backlash Planetary Gear Reducer , 3 Arcmin Planetary Gear Reducer , ISO9001 Speed Gear Reducer

QA series Planetary Gearbox High Torque Low Backlash Low Noise Speed Gear Reducer

The high-precision planetary gearbox adopts spur gear design, and is used in various control transmission fields with servo motors, such as precision machine tools, laser cutting equipment, battery processing equipment, etc. It has the advantages of large torsional rigidity and large output torque.

Products show:

QA Series Planetary Gear Reducer High Torque Low Backlash Low Noise 0

Specifications				QA60	QA90	QA120	QRF140	QA180	QA220
Technal Parameters				QA60	QA90	QA120	QRF140	QA180	QA220
Max. Torque			Nm	1.5times rated torque
Emergency Stop Torque			Nm	2.5times rated torque
Max. Radial Load			N	1530	3250	6700	9400	14500	16500
Max. Axial Load			N	630	1300	3000	4700	7250	8250
Torsional Rigidity			Nm/arcmin	6	12	23	47	130	205
Max.Input Speed			rpm	8000	6000	6000	6000	6000	3000
Rated Input Speed			rpm	4000	3000	3000	3000	3000	1500
Noise			dB	≤58	≤60	≤65	≤68	≤68	≤72
Average Life Time			h	20000
Efficiency Of Full Load			%	L1≥95% L2≥90%
Return Backlash	P1	L1	arcmin	≤3	≤3	≤3	≤3	≤3	≤3
	P1	L2	arcmin	≤5	≤5	≤5	≤5	≤5	≤5
	P2	L1	arcmin	≤5	≤5	≤5	≤5	≤5	≤5
	P2	L2	arcmin	≤7	≤7	≤7	≤7	≤7	≤7
Moment Of Inertia Table	L1	3	Kg*cm2	0.16	0.61	3.25	9.21	28.95	69.70
		4	Kg*cm2	0.14	0.48	2.74	7.54	23.67	54.61
		5	Kg*cm2	0.13	0.47	2.71	7.42	23.29	53.51
		7	Kg*cm2	0.13	0.45	2.62	7.14	22.48	50.92
		10	Kg*cm2	0.13	0.45	2.60	7.14	1	/
	L2	12	Kg*cm2	0.13	0.40	2.57	7.03	22.51	50.18
		15	Kg*cm2	0.13	0.45	0.45	2.63	7.30	23.59
		16	Kg*cm2	0.13	0.45	0.45	2.63	7.30	23.59
		20	Kg*cm2	0.13	0.45	0.45	2.43	6.92	23.33
		25	Kg*cm2	0.13	0.45	0.45	2.39	6.92	22.68
		28	Kg*cm2	0.13	0.45	0.45	2.43	6.92	23.33
		30	Kg*cm2	0.13	0.45	0.45	2.63	7.30	25.59
		35	Kg*cm2	0.13	0.45	0.45	2.39	6.92	22.68
		40	Kg*cm2	0.13	0.45	0.45	2.43	6.92	23.33
		50	Kg*cm2	0.13	0.40	0.40	2.39	6.92	22.68
		70	Kg*cm2	0.13	0.40	0.40	2.39	6.72	22.68
		100	Kg*cm2	0.13	0.40	0.40	2.39	6.72	22.68
Technical Parameter	Level	Ratio		QA60	QA90	QA120	QA140	QA180	QA220
Rated Torque	L1	3	Nm	40	105	165	360	880	1100
		4	Nm	45	130	230	480	880	1800
		5	Nm	45	130	230	480	1100	1800
		7	Nm	45	100	220	480	1100	1600
		10	Nm	40	90	200	440	1	/
	L2	12	Nm	30	75	175	360	770	1200
		15	Nm	40	105	165	360	880	1100
		16	Nm	40	105	165	360	880	1100
		20	Nm	45	130	230	480	1100	1800
		25	Nm	45	130	230	480	1100	1800
		28	Nm	45	130	230	480	1100	1800
		30	Nm	40	105	165	360	880	1100
		35	Nm	45	130	230	480	1100	1800
		40	Nm	45	130	230	480	1100	1800
		50	Nm	45	130	230	480	1100	1800
		70	Nm	45	100	220	480	1100	1600
		100	Nm	30	75	175	360	770	1200
Degree Of Protection			IP65
Operation Temprature			90°C -1O°C
Weight	L1		kg	1.25	3.75	8.5	16	28.5	49.3
Weight	L2		kg	1.75	5.1	12	21.5	40	62.5

QA Series Planetary Gear Reducer High Torque Low Backlash Low Noise 1

Our advantage:

1. Output threaded connection, standard installation,universal usage.
2. Single cantilever structure.simple design,economic price
3. Working steady. Low noise.
4. Round flange output,threaded reverse connection,standardized size.
5. Keyway can be opened in the force shaft.
6. The output connection specifications are complete and there are many choices
7. Backlash 8-16 arcmin. Can suit most occasion.

Frequently Asked Questions:

Q: In what areas are your products mainly used?

A: At present, we mainly specialize in precision planetary gear reduction engines. Precision planetary reducer is mostly used in the field of automation, such as medical equipment, 3D printers, door opening machines, tapping machines, CNC lathes and a series of automation equipment.

Q: How to choose the right planetary gearbox?

A: First of all, we need you to provide relevant parameters. If you have motor drawings, it will allow us to recommend a suitable gearbox for you more quickly. If not, we would like you to provide the following motor parameters: output speed, output torque, voltage, current, IP, noise, operating conditions, motor size and power, etc.

Q: Do you offer customized services?

A:Yes, we offer a custom service. You just need to put forward your needs, we will do our best to provide you with a plan, make plans, do our best to meet your needs.

Q: What is the price?

A: The main determinant of the price of each product is the quantity of the order. You can communicate with us and let us know each other. We believe that our price, product quality and our service will make you satisfied.
