Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission

Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission
Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission

Large Image :  Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission

Product Details:
Place of Origin: China
Brand Name: LM
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1-20USD
Packaging Details: Normal
Delivery Time: 5-8working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1-20000

Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission

Description
Specification Range: 60-160 Speed Ratio Range: 3-100
Return Clearance: 8-16 Arcmin Specification: 60
Origin: China Product Name: Planetary Gearbox
High Light:

16 Arcmin Planetary Gear Box

,

Round Flange Mount Planetary Gear Reducer

,

100rpm Planetary Gear Reducer

QRL series Round Flange Mount Ratio 3-100 Transmission Planetary Gear Box

Characteristics:

1. Hole output structure,easy installation.

2. Straight tooth drive ,single cantilever structure.simple design,economic price.

3. Working steady. Low noise.

4. Low return backlash. Can suit most occasion.

5. The input connection specifications are complete and there are many choices.
6. Keyway can be opened in the force shaft.
7. Square mount flange output,high precision,high torque.
8. Speed ratio range:3-100
9. Precision range:8-16arcmin
10. Size range:60-160mm



Products show:

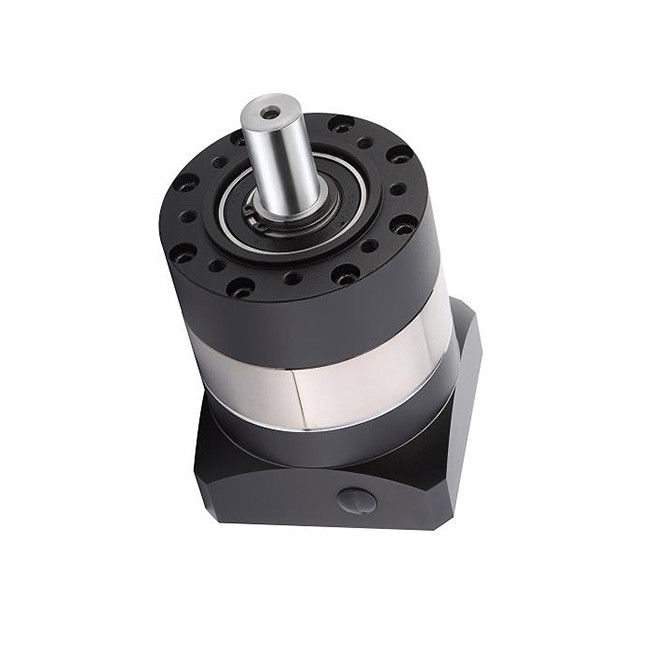

Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission 0



Product Parameters
Specifications QRL40 QRL60 QRL80 QRL90 QRL120 QRL160
Technal Parameters
Max. Torque Nm 1.5times rated torque
Emergency Stop Torque Nm 2.5times rated torque
Max. Radial Load N 185 240 400 450 1240 2250
Max. Axial Load N 150 220 420 430 1000 1500
Torsional Rigidity Nm/arcmin 0.7 1.8 4.7 4.85 11 35
Max.Input Speed rpm 8000 8000 6000 6000 6000 4000
Rated Input Speed rpm 4500 4000 3500 3500 3500 3000
Noise dB ≤55 ≤58 ≤60 ≤60 ≤65 ≤70
Average Life Time h 20000
Efficiency Of Full Load % L1≥96% L2≥94%
Return Backlash P1 L1 arcmin ≤8 ≤8 ≤8 ≤8 ≤8 ≤8
L2 arcmin ≤12 ≤12 ≤12 ≤12 ≤12 ≤12
P2 L1 arcmin ≤16 ≤16 ≤16 ≤16 ≤16 ≤16
L2 arcmin ≤20 ≤20 ≤20 ≤20 ≤20 ≤20
Moment Of Inertia Table L1 3 Kg*cm2 0.1 0.46 0.77 1.73 12.78 36.72
4 Kg*cm2 0.1 0.46 0.77 1.73 12.78 36.72
5 Kg*cm2 0.1 0.46 0.77 1.73 12.78 36.72
7 Kg*cm2 0.06 0.41 0.65 1.42 11.38 34.02
10 Kg*cm2 0.06 0.41 0.65 1.42 11.38 34.02
L2 12 Kg*cm2 0.08 0.44 0.72 1.49 12.18 34.24
15 Kg*cm2 0.08 0.44 0.72 1.49 12.18 34.24
16 Kg*cm2 0.08 0.44 0.72 1.49 12.18 34.24
20 Kg*cm2 0.08 0.44 0.72 1.49 12.18 34.24
25 Kg*cm2 0.08 0.44 0.72 1.49 12.18 34.24
28 Kg*cm2 0.08 0.44 0.72 1.49 12.18 34.24
30 Kg*cm2 0.08 0.44 0.72 1.49 12.18 34.24
35 Kg*cm2 0.08 0.44 0.72 1.49 12.18 34.24
40 Kg*cm2 0.08 0.44 0.72 1.49 12.18 34.24
50 Kg*cm2 0.05 0.34 0.58 1.25 11.48 34.02
70 Kg*cm2 0.05 0.34 0.58 1.25 11.48 34.02
100 Kg*cm2 0.05 0.34 0.58 1.25 11.48 34.02
Technical Parameter Level Ratio   PRL40 PRL60 PRL80 PRL90 PRL120 PRL160
Rated Torque L1 3 Nm / 27 50 96 161 384
4 Nm 16 40 90 122 210 423
5 Nm 15 40 90 122 210 423
7 Nm 12 34 48 95 170 358
10 Nm 10 16 22 56 86 210
L2 12 Nm / 27 50 95 161 364
15 Nm / 27 50 96 161 364
16 Nm 16 40 90 122 210 423
20 Nm 16 40 90 122 210 423
25 Nm 15 40 90 122 210 423
28 Nm 16 40 90 122 210 423
30 Nm / 27 50 96 161 364
35 Nm 12 40 90 122 210 423
40 Nm 16 40 90 122 210 423
50 Nm 15 40 90 122 210 423
70 Nm 12 34 48 95 170 358
100 Nm 10 16 22 96 80 210
Degree Of Protection   IP65
Operation Temprature ºC - 10ºC to -90ºC
Weight L1 kg 0.43 0.95 2.27 3.06 6.93 15.5
L2 kg 0.65 1.2 2.8 3.86 8.98 17

Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission 1





Our advantage:



1.Output threaded connection, standard installation,universal usage.
2.Single cantilever structure.simple design,economic price
3.Working steady. Low noise.
4.Round flange output,threaded reverse connection,standardized size.
5.Keyway can be opened in the force shaft.
6.
The output connection specifications are complete and there are many choices
7.Backlash 8-16 arcmin. Can suit most occasion.



Frequently Asked Questions:



Q: In what areas are your products mainly used?

A: At present, we mainly specialize in precision planetary gear reduction engines. Precision planetary reducer is mostly used in the field of automation, such as medical equipment, 3D printers, door opening machines, tapping machines, CNC lathes and a series of automation equipment.



Q: How to choose the right planetary gearbox?

A: First of all, we need you to provide relevant parameters. If you have motor drawings, it will allow us to recommend a suitable gearbox for you more quickly. If not, we would like you to provide the following motor parameters: output speed, output torque, voltage, current, IP, noise, operating conditions, motor size and power, etc.



Q: Do you offer customized services?

A:Yes, we offer a custom service. You just need to put forward your needs, we will do our best to provide you with a plan, make plans, do our best to meet your needs.



Q: What is the price?

A: The main determinant of the price of each product is the quantity of the order. You can communicate with us and let us know each other. We believe that our price, product quality and our service will make you satisfied.



Delivery and payment
Round Flange Mount Planetary Gear Reducer Ratio 3-100 Transmission 2
