High Precision Circular Flange Mounted Motor Planetary Gear Box (QG Series)





The high-precision planetary gearbox adopts spur gear design, and is used in various control transmission fields with servo motors, such as precision machine tools, laser cutting equipment, battery processing equipment, etc. It has the advantages of large torsional rigidity and large output torque.



The product description:

1. Specail flange joint output, can satisfy with the biggest installation.

2. shorter size, low installation space.

3. Low return backlash,precision location.

4. Double bracing cage planetary shelf structure.high reliable. Can suit reversible rotation frequently.

5. With axial clearance adjustment function.
6. The rotating frame bearing can be switched. After being changed into angular contact bearing, the bearing capacity of axial force and radial force will be greatly reduced.
7. Impact resistance, can adapt to high acceleration and deceleration conditions.



Products show:

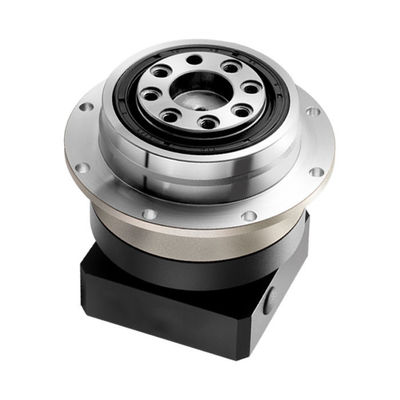

High Precision Circular Flange Mounted Motor Planetary Gear Box QG Series 0



Product Parameters
Specifications QG64 QG90 QG110
Technal Parameters
Max. Torque Nm 3times rated torque
Emergency Stop Torque Nm 3times rated torque
Max. Radial Load N 2050 4100 8200
Max. Axial Load N 513 1025 2050
Torsional Rigidity Nm/arcmin 13 31 82
Max.Input Speed rpm 6000 6000 4500-6000
Rated Input Speed rpm 4000 3000 3000
Noise dB ≤58 ≤60 ≤65
Average Life Time h 20000
Efficiency Of Full Load % L1≥95% L2≥90%
Return Backlash P1 L1 arcmin ≤3 ≤3 ≤3
L2 arcmin ≤5 ≤5 ≤5
P2 L1 arcmin ≤5 ≤5 ≤5
L2 arcmin ≤8 ≤8 ≤8
Moment Of Inertia Table L1 4 Kg*cm2 0.13 0.51 2.87
5 Kg*cm2 0.13 0.47 2.71
7 Kg*cm2 0.13 0.45 2.62
10 Kg*cm2 0.03 0.44 2.57
L2 16 Kg*cm2 0.03 0.23 0.47
20 Kg*cm2 0.03 0.23 0.47
25 Kg*cm2 0.03 0.23 0.47
28 Kg*cm2 0.03 0.23 0.47
35 Kg*cm2 0.03 0.23 0.47
40 Kg*cm2 0.03 0.23 0.47
50 Kg*cm2 0.03 0.2 0.44
70 Kg*cm2 0.03 0.2 0.44
100 Kg*cm2 0.03 0.2 0.44
Technical Parameter Level Ratio   QG64 QG90 QG110
Rated Torque L1 4 Nm 40 120 220
5 Nm 40 125 260
7 Nm 40 125 260
10 Nm 35 80 160
L2 16 Nm 50 120 300
20 Nm 50 120 300
25 Nm 50 125 350
28 Nm 50 120 300
35 Nm 50 125 350
40 Nm 50 125 350
50 Nm 50 125 350
70 Nm 50 125 350
100 Nm 35 80 220
Degree Of Protection   IP65
Operation Temprature ºC - 10ºC to -90ºC
Weight L1 kg 1.3 3.4 7.1
L2 kg 1.9 4.7 9.5



High Precision Circular Flange Mounted Motor Planetary Gear Box QG Series 1

Our advantage:



1.Output threaded connection, standard installation,universal usage.
2.Single cantilever structure.simple design,economic price
3.Working steady. Low noise.
4.Round flange output,threaded reverse connection,standardized size.
5.Keyway can be opened in the force shaft.
6.
The output connection specifications are complete and there are many choices
7.Backlash 8-16 arcmin. Can suit most occasion.



Frequently Asked Questions:



Q: In what areas are your products mainly used?

A: At present, we mainly specialize in precision planetary gear reduction engines. Precision planetary reducer is mostly used in the field of automation, such as medical equipment, 3D printers, door opening machines, tapping machines, CNC lathes and a series of automation equipment.



Q: How to choose the right planetary gearbox?

A: First of all, we need you to provide relevant parameters. If you have motor drawings, it will allow us to recommend a suitable gearbox for you more quickly. If not, we would like you to provide the following motor parameters: output speed, output torque, voltage, current, IP, noise, operating conditions, motor size and power, etc.



Q: Do you offer customized services?

A:Yes, we offer a custom service. You just need to put forward your needs, we will do our best to provide you with a plan, make plans, do our best to meet your needs.



Q: What is the price?

A: The main determinant of the price of each product is the quantity of the order. You can communicate with us and let us know each other. We believe that our price, product quality and our service will make you satisfied.
